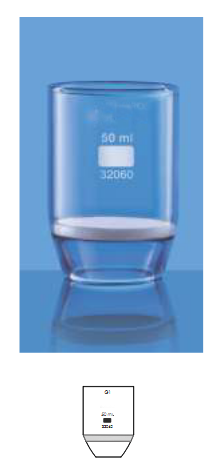

Made of 3.3 borosilicate glass
Particularly adapted to analytical work where precipitates are dried to constant weight at 110°C
Crucibles should not be subjected to sudden temperature changes
In order to avoid strain, they should not be removed from the furnace until the temperature has dropped to 250°C
Gooch Crucible is used for metal casting and analysis

Product code	capacity ml	Porosity Grade mm	Dia of disc mm	Approx height	Quantity per case
11911/07	15	1	20	50	10
11911/07	15	2	20	50	10
11911/07	15	3	20	50	10
11911/07	15	4	20	50	10
11911/07	15	5	20	50	10
11911/10	30	1	30	60	10
11911/10	30	2	30	60	10
11911/10	30	3	30	60	10
11911/10	30	4	30	60	10
11911/10	30	5	30	60	10
11911/12	50	1	40	65	10
11911/12	50	2	40	65	10
11911/12	50	3	40	65	10
11911/12	50	4	40	65	10
11911/12	50	5	40	65	10

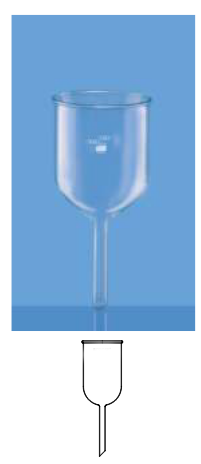

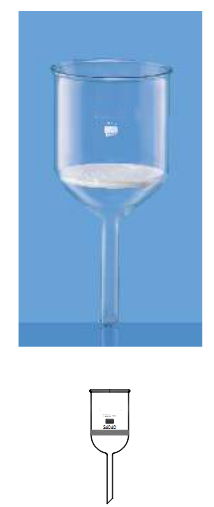

Made of 3.3 borosilicate glass
Suitable for use with Borosil's Filtering Crucibles Gooch type with Sintered Disc

Product code	Capacity ml	Porosity Grade	Dia of Disc mm	Approx Height mm	stem Dia mm	Quantity per case
11913/058	35	1	30	130	8	5
11913/658	35	2	30	130	8	5
11913/758	35	3	30	130	8	5
11913/858	35	4	30	130	8	5
11913/958	35	5	30	130	8	5
11913/72	80	1	35	142	8	5
11913/672	80	2	35	142	8	5
11913/772	80	3	35	142	8	5
11913/872	80	4	35	142	8	5
11913/972	80	5	35	142	8	5
11913/20	200	1	68	215	13	5
11913/620	200	2	68	215	13	5
11913/720	200	3	68	215	13	5
11913/820	200	4	68	215	13	5
11913/920	200	5	68	215	13	5
11913/024	500	1	92	258	17	2
11913/624	500	2	92	258	17	2
11913/724	500	3	92	258	17	2
11913/824	500	4	92	258	17	2
11913/924	500	5	92	258	17	2
11913/29	1000	1	124	276	19	2
11913/629	1000	2	124	276	19	2
11913/729	1000	3	124	276	19	2
11913/829	1000	4	124	276	19	2
11913/929	1000	5	124	276	19	2

Product code	Capacity ml	Porosity Grade	Dia of Disc mm	Approx Height mm	stem Dia mm	Quantity per case
11914/010	30	1	30	130	125	5
11914/610	30	2	30	130	125	5
11914/710	30	3	30	130	125	5
11914/810	30	4	30	130	125	5
11914/910	30	5	30	130	125	5
11914/14	65	1	65	210	13	5
11914/614	65	2	65	210	13	5
11914/714	65	3	65	210	13	5
11914/814	65	4	65	210	13	5
11914/914	65	5	65	210	13	5
11914/15	90	1	90	330	17	5
11914/615	90	2	90	330	17	5
11914/715	90	3	90	330	17	5
11914/815	90	4	90	330	17	5
11914/915	90	5	90	330	17	5
