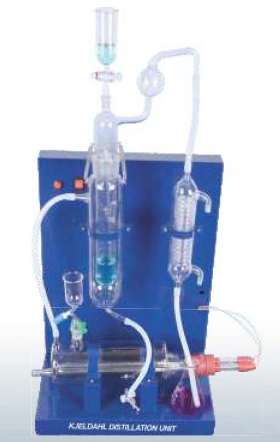

Distillation Unit:

The Kjeldahl distillation unit is used to perform nitrogen analysis and protein determination by Kjeldahl method in food, feed, environmental and chemical industries after digested the sample accurately.

Apparatus

Product code	Description
10111/000	Kjeldahl Distillation Unit
10111/S00	Kjeldahl Distillation Unit for Soil Analysis

Spares

Product code	Description
10111/SCF000	Dropping funnel for Kjeldahl Distillation Unit
10111/SGC00	Coil Condenser for Kjeldahl Distillation Unit
10111/SGV00	Glass vessel to hold digested sample with trap
10111/SGJ000	Outer Jacket for spent liquid
10111/SGY00	Funnel to add distilled water
10111/SGG00	Steam Generator ( Boiler Only)
10111/SQH00	Quartz Heater for Kjeldahl

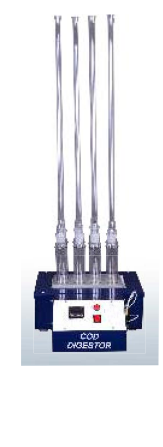

COD Digestion Unit:

The Kjeldahl distillation unit is used to perform nitrogen analysis and protein determination by Kjeldahl method in food, feed, environmental and chemical industries after digested the sample accurately..

The COD Digestion Unit is used for determination of Chemical Oxygen Demand in effluents.The unit consists of :

• Aluminium block heating unit with provision to keep 8 or 15 samples at a time in 40 mm diameter reaction vessels.
• Air Condensers.
• Digital PID temperature indicator cum controller with built in timer for 0 temperatures up to 250 C .
• Insert rack to hold the digestion tube with Air Condenser.

MODEL

• 8 Samples COD System
• 15 Samples COD System

SPARE

• COD digestion vessel in Borosilicate glass
• Air Condenser in Borosilicate glass

Product code	Description
10112/000008	8 Test COD Digestion Appratus
10112/000015	15 Test COD Digestion Appratus
10112/SGT250	COD digestion tubes 250 ml, 5pc / pack
10112/SAC000	COD Air Condenser, 5pc / pack

Spares

Product code	Description
10111/SCF000	Dropping funnel for Kjeldahl Distillation Unit
10111/SGC00	Coil Condenser for Kjeldahl Distillation Unit
10111/SGV00	Glass vessel to hold digested sample with trap
10111/SGJ000	Outer Jacket for spent liquid
10111/SGY00	Funnel to add distilled water
10111/SGG00	Steam Generator ( Boiler Only)
10111/SQH00	Quartz Heater for Kjeldahl

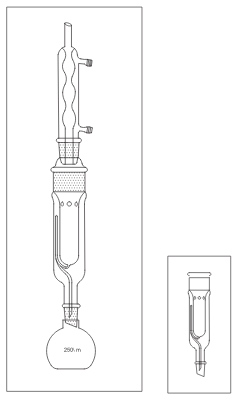

Soxhlet Hot Extraction:

The new jacketed design protects the siphon from breakage and permits the extraction at the boiling point of the solvent. During extraction process the inner cup is enveloped in ascending solvent vapors.

The hot extraction process reduces time considerably. Compared with condensed solvent in the classical soxhlet method where the solvent temperature is below the boiling point, this method is faster because analytes are more soluable in hot vapor than in cold to warm solvent.It not only reduces time of extraction, but also reduces power and is very easy in handling

Product code	Description
10113/000000	Jacketed Hot Extraction Unit with 250ml flat bottom flask
10112/SGE100	Spare Extractor 100ml
